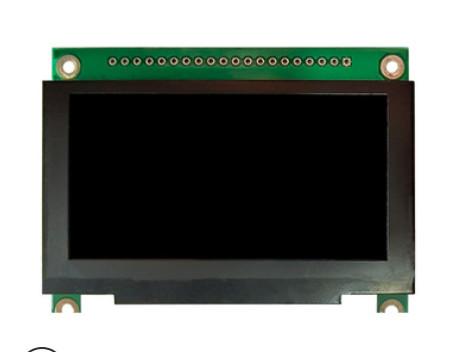

3V 12864 Lcd Liquid Crystal Display

Brand Name : hainengzhichuang

Model Number : custom

Place of Origin : Shenzhen, China

MOQ : custom

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model No. : RYG12864A

Outline Dimension(mm) : 40.8x34.8

LCD Mode : FSTN-Positive, STN-Blue, STN-YG

Backlight : White or Y/G LED backlight

Operating Temp : -20º C~70º C

Storage Temp : -30º C~80º C

Dot Format(dot) : 128x64

Driver IC : ST7565R

Contact Now

3V 12864 Resolution Liquid Crystal COG Lcd Display Monochrome Lcd Screen

General Specifications

1. COG Graphic LCD Module

2. Dots Format, 128x64

3. Controller , ST7567

4. STN-Gray, Blue, DFSTN-Negative, FSTN-Postive

5. LED Back Light, White, Red, Amber

6. Widely Use On Hand-held Device

Display Specifications

Item Description
Product Name 128x64dots Graphic LCD Module
Model No. RYG12864A
Dot Format(dot) 128x64
Outline Dimension(mm) 40.8x34.8
VA Size(mm) 37.7X25.1
AA Size( mm) 34.5x21.7
Viewing Angle 6 O' clock
LCD Mode FSTN-Positive, STN-Blue, STN-YG
Backlight White or Y/G LED backlight
Driver IC ST7565R
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

FAQ

Q1: How many years for warranty can you provide?


A1: Normally 1 year. Can be longer but price should be modified.

Q2: What shall we do if we find any item missing or defective after receiving the goods?


A2: Please contact us ASAP, we will check it and offer the best solution according to the situation.

Q3: Is it possible to customize the LCD modules?


A3: Yes you could let us know the concrete requirements then we will design and confirm with you.

Q4: Is it possible we appoint the delivery agent?


A4: Yes. Except the couriers we mentioned, we could use others as your requirement.
